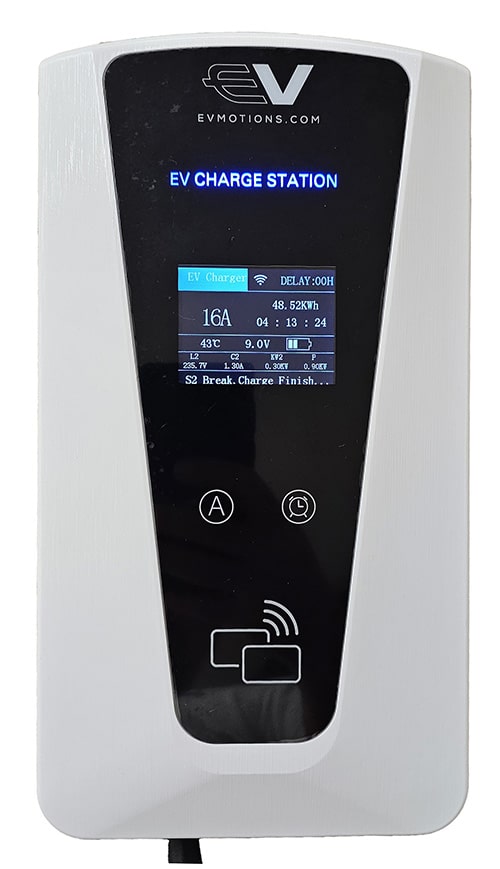

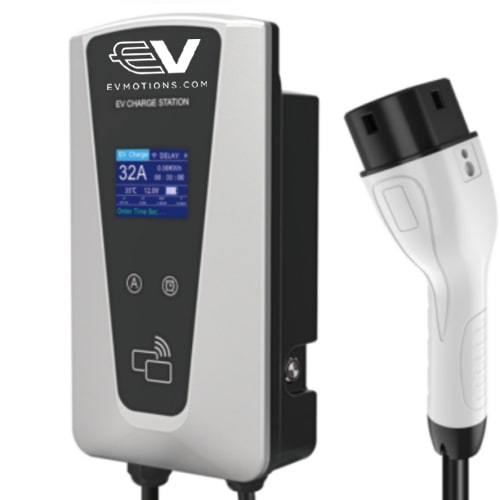

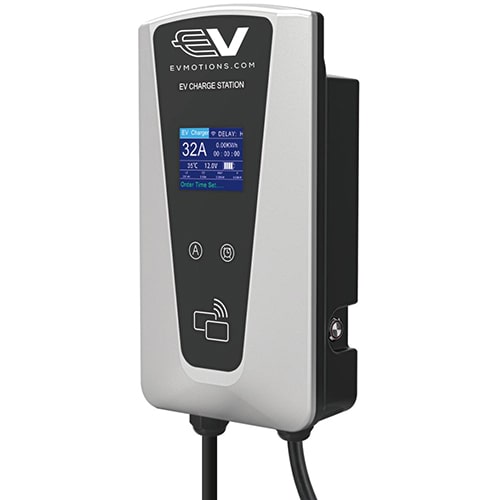

Electric car Smart Wallbox Wall EV charger Type2 3x16A (11kW)

• Wall-mounted electric car battery charger
• IP54 protection level
• Bluetooth, Wi-Fi connection (Tuya app)
• Standard battery charger for electric cars with Type2 cable
• Cable length: 4.5m

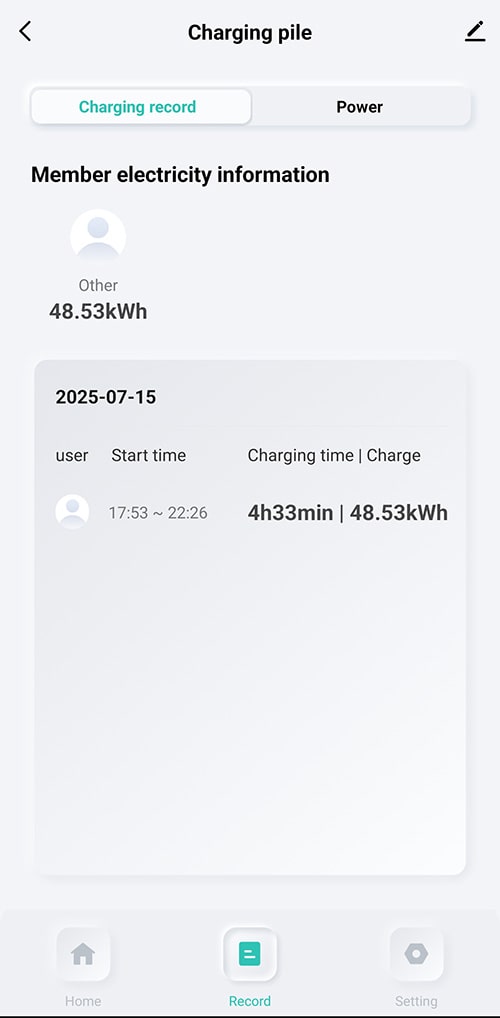

• Android / iOS app displays the current charging current, temperature and power consumption
• RFID card (2pcs) included (can be disabled within the app)
• Plug&Play automatic start or RFID card or start via app
• Stores charging information (only with Wi-Fi connection)
• Charging delay function (maximum 10 hours)
• Number of phases: 3
• Current per phase: 16A (adjustable in 1A steps via app or front button)
• Max. power: 11 kW
• Charger side connector: Type2
• The charger has TÜV, CE, UL approvals.
• Overvoltage protection, overcurrent protection, overheating protection, undervoltage protection, leakage protection, lightning protection, short circuit protection
• Compatible with all Type2 electric cars
• Power source: 400V
• Dimensions: 301 x 162 x 74 mm
• Weight: 4 kg
