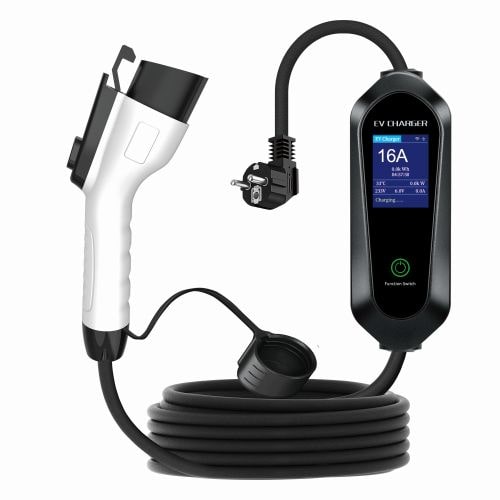

Standard battery charger for electric cars with Type 1 connection
LCD display, displays the current charging current, temperature and power consumption
IP54 protection level (Protected against dust, Protected against splashing water from all directions)

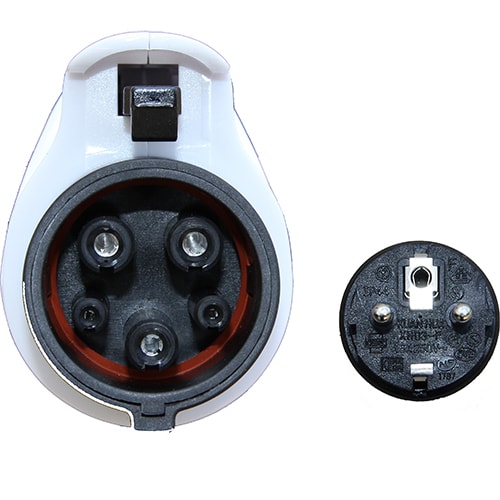

1. Type 1 (SAE J1772)
2. Schuko 230V Standard mains plug
Cable length: 5 meters
Number of phases: 1
Current per phase: 8-10-13-16 A (variable)
Memorizes the current used during the last charge, no need to set it for each charge
Max. power: 3.7 kW
Charging side connector: 230V standard
Car side connector: Type 1
The cable has TÜV, CE, UL approvals.

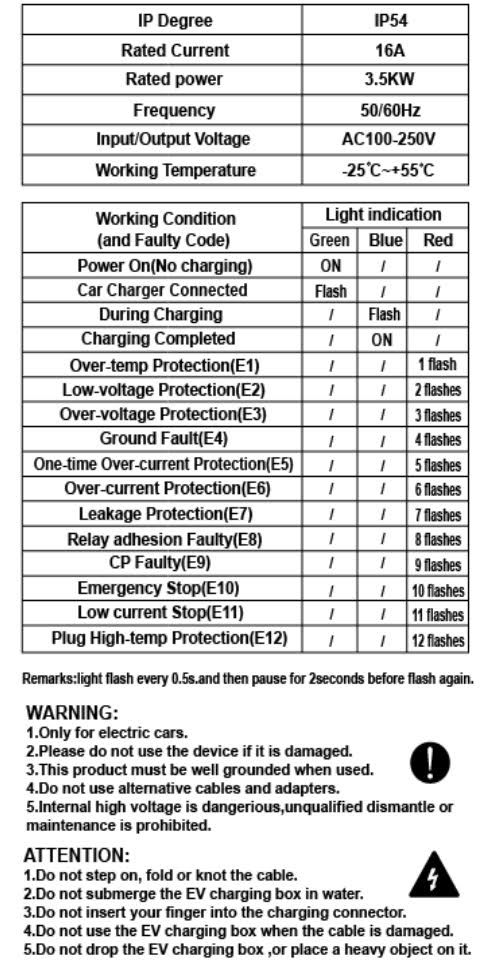

This charging station has overcurrent protection, overvoltage protection, leakage protection and overheating protection
This cable can be used to charge an electric car equipped with a Type1 connector at home
Cable thickness: 3*2.5 mm² + 2*0.5 mm²
Type 1 (SAE J1772) connector: the US and Japanese standard, used in Europe by the pre-2018 Nissan Leaf, Mitsubishi Outlander PHEV and i-MiEV, the early Hyundai Ioniq and Kia Soul EV, and models imported from the USA.
